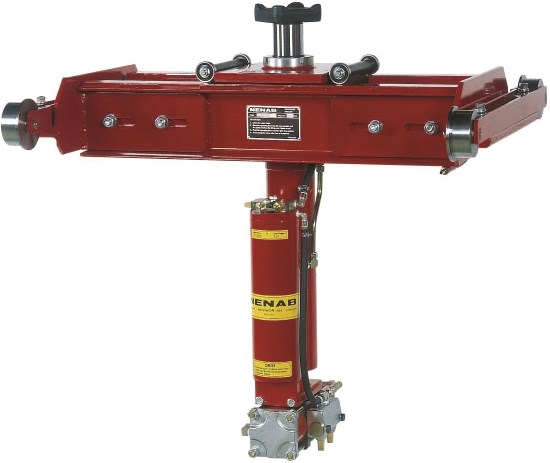

Hydraulic pit lift.

For heavy transport vehicles. The carriages are manufactured for all types of inspection pits (ask for a form to submit your pit dimensions). Three modes of operation: Neutral, fast moving and lifting mode. When released the valve automatically returns to neutral mode and the lift is locked in the existing height mode. Min height above floor: 100 mm Hoist travel: 500 mm Lifting time: appr. 40 sec. The lift can be supplied with a piston extension for lifts up to 900 mm.

Technical data

Part No

64010

Capacity

15000 kg

Maximum air pressure

0,8 (8) MPa (bar)

H.S. Code

84254100
